200 Series Door Closer
Hydraulic door closer with rack and pinion mechanism.?
High quality components. With Needle bearing
Internal components in high quality steel.
Power adjustable Force EN 3 ?by spring.
Slide Hold Open Arm
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | ? ?950mm | |
Weight of Door ( kg ) Max. | ? ?40~65 kg | |
Back check Function | ? ?N/A | |
Delay Action Function | ? ?N/A | |
Max. Open Angle | ???140° | |
Hold -Open | Yes , ?Optional No hold open: | |
Fire Door | Yes,UL10C 3Hour Fire Rated door closer | |
Closing Speed Adjustment | Speed 1 | ? ?Max Open Angle~10° |
Speed 2 | ???10°~0° | |
Applicable Temperature ? | ??-30℃ To 60℃ | |
Applicability | ? ?Can be used for left and right-hand doors | |
Various Finish | SILVER, GOLD, BRONZE 8080, BLACK 9005 ,other color upon request? | |

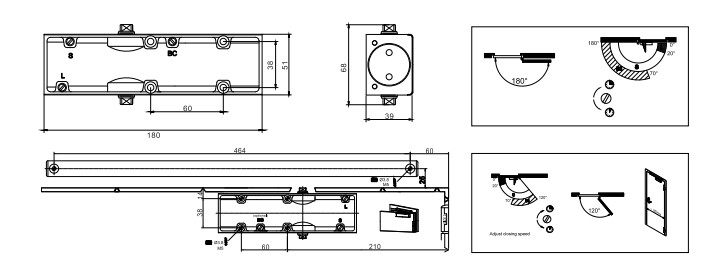

Dimension of Main Body(mm) | Length | ? 180 |
Width | ? ?39 | |
Height | ? ?51 | |
Weight ( kg ) | ? 2.2kg | |
Passed Durability Test | ?500,000 cycles | |
| Code | Material | Packing | Carton size |
| 203 | Aluminum | 10 sets/ctn | 53*27*29 cm |
