500,000 Cycles Guaranteed In Endurance
Two separate valves adjustable closing & latching speed
Work Temperature-30℃ To 60℃
Optional Built-In HOLD OPEN
Universal Application: Standard, Top-Jamb
Parallel Arm installation (P.A. Bracket be provided upon
Request))
TECHNICAL INFORMATION & FUNCTION |
Width of Door ( mm ) Max. | ? ?<750mm |
Weight of Door ( kg ) Max. | ? ?30 kg |
Back check Function | ? ?N/A |
Max. Open Angle | ? 180° |
Hold -Open | ? ?Yes |
Fire Door | ? ?N/A |
Closing Speed Adjustment | Speed 1 | ? ?Max Open Angle~10° |
Speed 2 | ???10°~0° |
Applicable Temperature ? | ??-30℃ To 60℃ |
Applicability | ? ?Can be used for left and right-hand doors |
Various Finish | ? ?SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request |

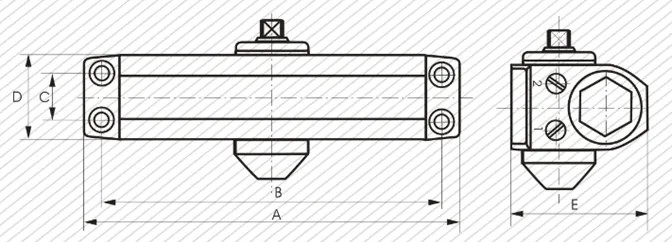

Dimension of Main Body | Length | ???142 |
Width | ???37 |
Height | ? ?57 |
Weight ( kg ) | ??1.05 kg |
Passed Durability Test | ? 500,000 cycles |
