100 Series Door Closer
Concealed Overhead Closer, "invisibledoor closer
103 Type meet UL standard, with CCCF certified
Precise Aluminum Body with Needle Bearing
Adjustable Closing Latching Speed
Closer body 3 2mm Thickness. Non Handed Installation
Slide Tracking arm with hold-open function
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | 950m | |
Weight of Door ( kg ) Max. | ?65 kg | |
Back check Functio | ?N/A | |
Max. Open Angle | 105° | |
Hold -Open | Optional | |
Fire Door | Yes, UL 3 hours Fire Rated door closer | |
Closing Speed Adjustment | Speed 1 | Max Open Angle~10° |
Speed 2 | ?10°~0° | |
Applicable Temperature? | ?-30℃ To 60℃ | |
Applicability | Can be used for left and right-hand doors | |
Various Finish | SILVER, GOLD, BRONZE ,,other color upon request | |

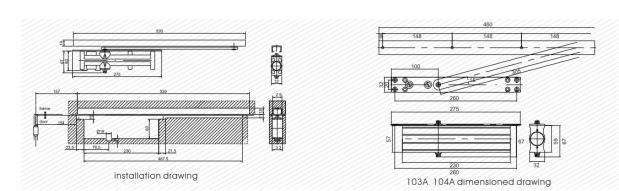

Dimension of Main Body | Length | 230 |
Width | 32 | |
Height | 60 | |
Weight ( kg ) | 1.91kg | |
Passed Durability Test | 500,000 cycles | |
?
| Code | Material | Packing | Carton size |
| 103 | Aluminum | 10 sets/ctn | 55.5*23*23 |
