200 Series Door Closer
Hydraulic door closer with rack and pinion mechanism.?
High quality components. With Needle bearing
Internal components in high quality steel.
Power adjustable Force EN 2~EN 4 by spring.
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | 1100mm | |
Weight of Door ( kg ) Max. | 25-85 kg | |
Back check Function | Yes | |
Delay Action Function | N/A | |
Max. Open Angle | 180° | |
Hold -Open | Yes , ?Optional No hold open: | |
Fire Door | No | |
Closing Speed Adjustment | Speed 1 | Max Open Angle~10° |
Speed 2 | 10°~0° | |
Applicable Temperature ? | -30℃ To 60℃ | |
Applicability | Can be used for left and right-hand doors | |
Various Finish | SILVER, GOLD, BRONZE 8080, BLACK 9005 ,other color upon request? | |

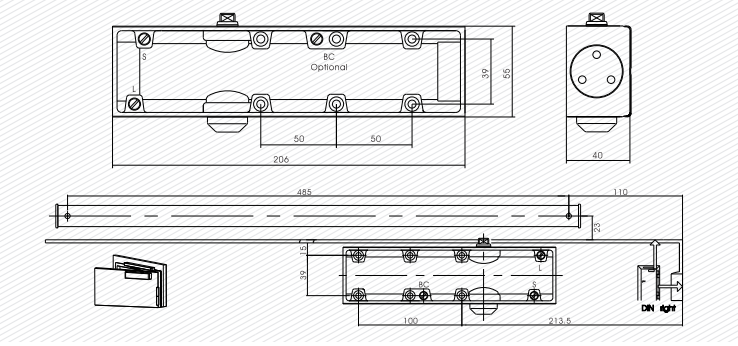

Dimension of Main Body | Length | 206 |
Width | 40 | |
Height | 55 | |
Weight ( kg ) | 2.2kg | |
Passed Durability Test | 500,000 cycles | |
| Code | Material | Packing | Carton size |
| 204 | Aluminum | 10 sets/ctn | 53*27*29 cm |
