2000 Series Door Closer
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | ? ?1250mm | |
Weight of Door ( kg ) Max. | ? ?25~120 kg | |
Back check Function | ? ?Yes | |
Delay Action Function | ? ?N/A | |
Max. Open Angle | ???180° | |
Hold -Open | Yes , ?Optional No hold open: | |
Fire Door | Yes,EN1634,60 Minutes Fire Rated door closer | |
Closing Speed Adjustment | Speed 1 | ? ?Max Open Angle~10° |
Speed 2 | ???10°~0° | |
Applicable Temperature ? | ??-30℃ To 60℃ | |
Applicability | ? ?Can be used for left and right-hand doors | |
Various Finish | SILVER, GOLD, BRONZE 8080, BLACK 9005 ,other color upon request? | |

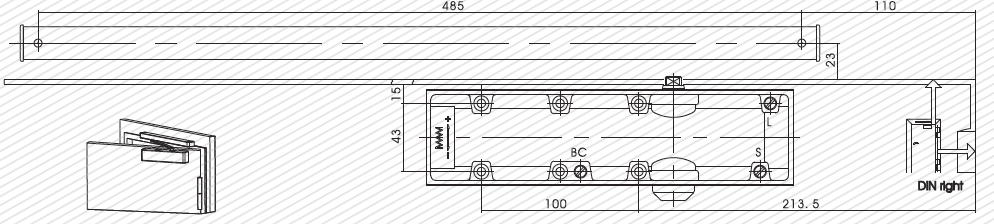

Dimension of Main Body | Length | ? ?233 |
Width | ???42 | |
Height | ? ?60 | |
Weight ( kg ) | ? ?2.2kg | |
Passed Durability Test | ?500,000 cycles | |
