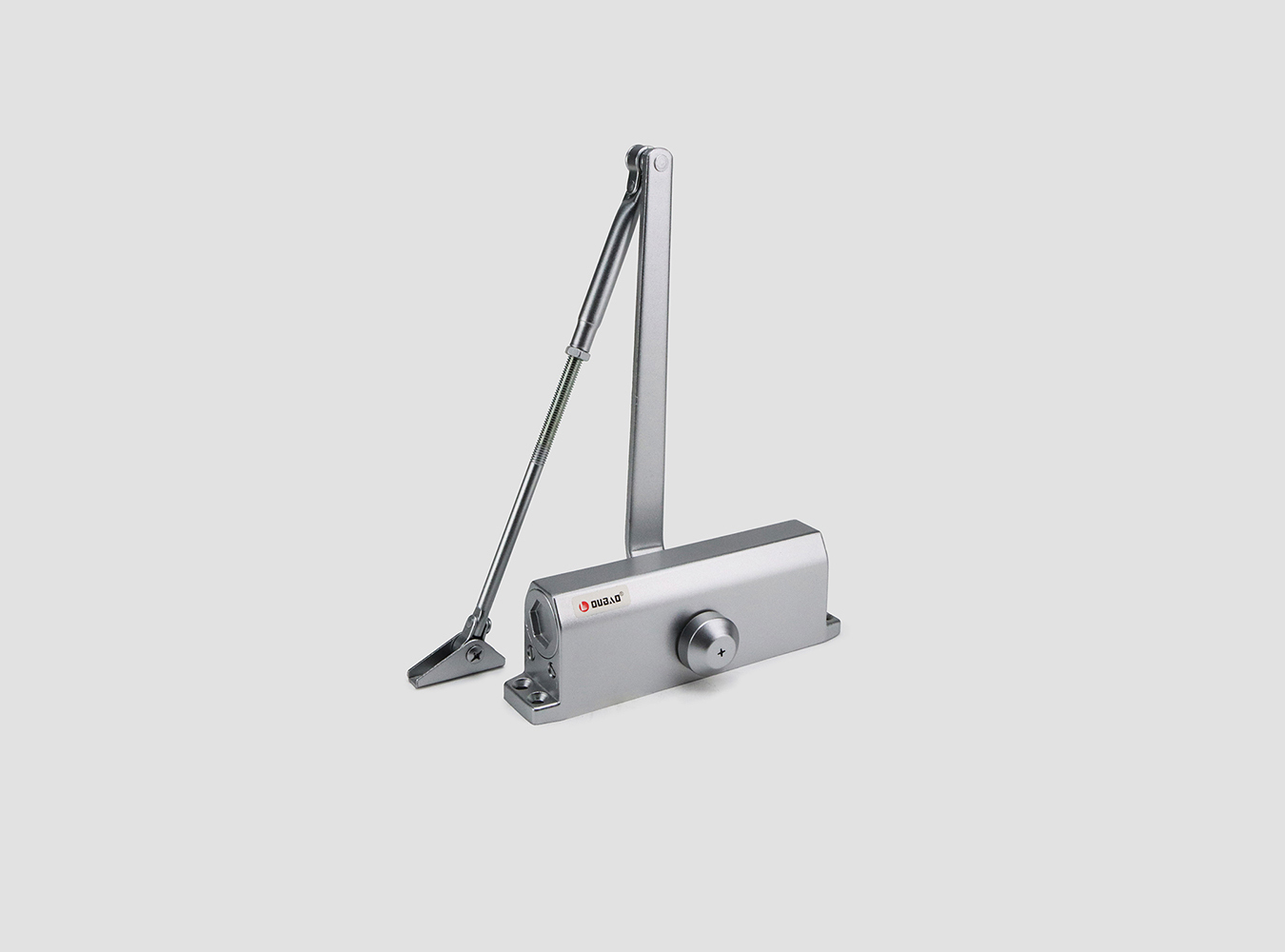

CE Certified Door Closer
500,000 Cycles Guaranteed In Endurance
Two separate valves adjustable closing & latching speed
Work Temperature-30℃ To 60℃
Optional Built-In HOLD OPEN
Universal Application: Standard, Top-Jamb
Parallel Arm installation (P.A. Bracket be provided upon
Request))
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | ????850mm | |
Weight of Door ( kg ) Max. | ????40-65kg | |
Back check Function | ? ?YES | |
Max. Open Angle | ???180° | |
Hold -Open | ? ?YES | |
Fire Door | ? ?N/A | |
Closing Speed Adjustment | Speed 1 | ? ?Max Open Angle~10° |
Speed 2 | ???10°~0° | |
Applicable Temperature ? | ??-30℃ To 60℃ | |
Applicability | ? ?Can be used for left and right-hand doors | |
Various Finish | ? ?SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request | |
Dimension of Main Body | Length | ??223 |
Width | ???37 | |
Height | 44.5 | |
Weight ( kg ) | ??2.15 kg | |
Passed Durability Test | ?500,000 cycles | |
| Code | Material | Packing | Carton Size |
| 503 | Aluminum | 10 sets/carton | 51*31*19cm |
| Type | Body Dimension | ||||
| A | B | C | D | E | |
| 503 | 223 | 206 | 19 | 44.5 | 72 |
