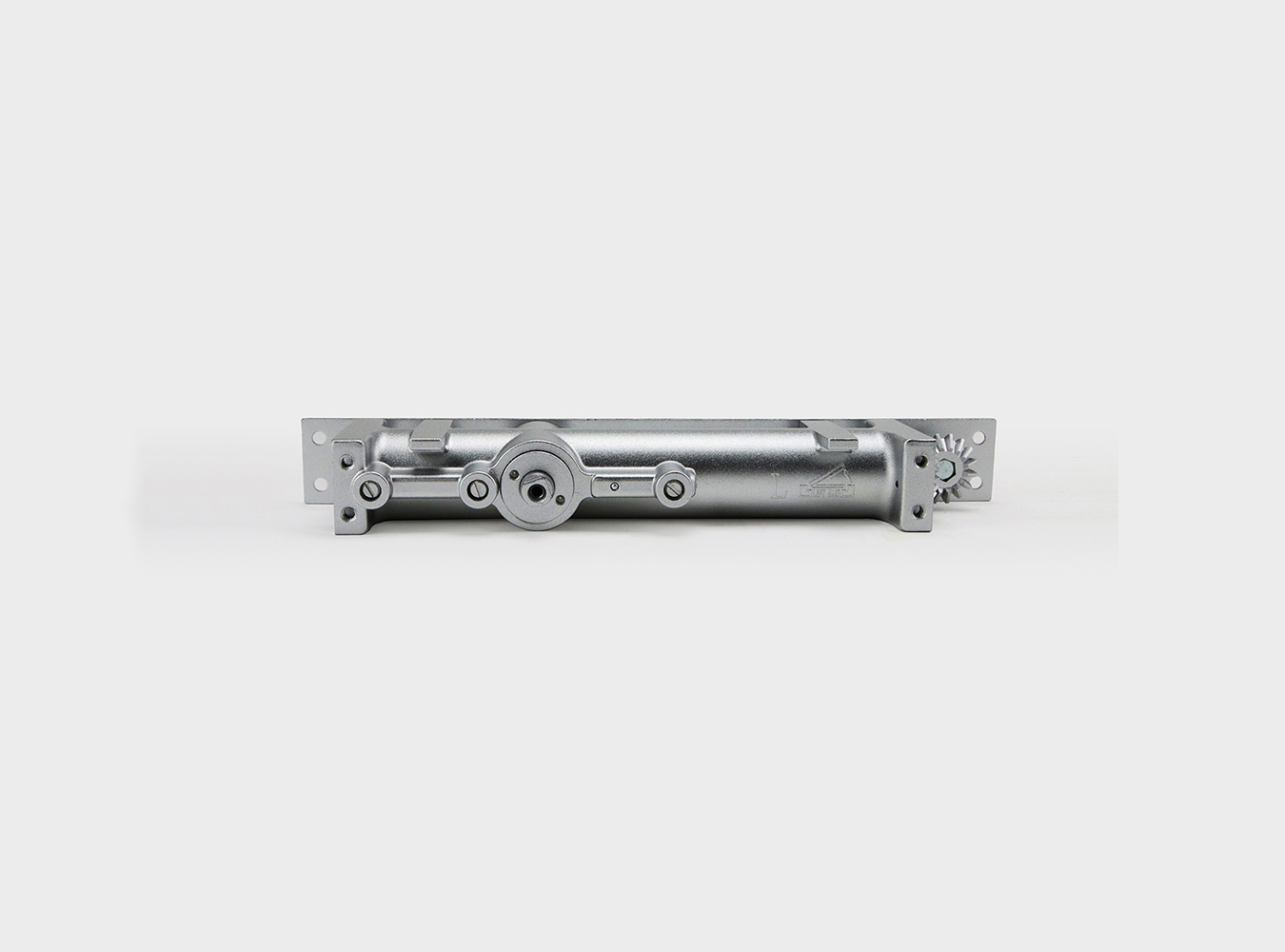

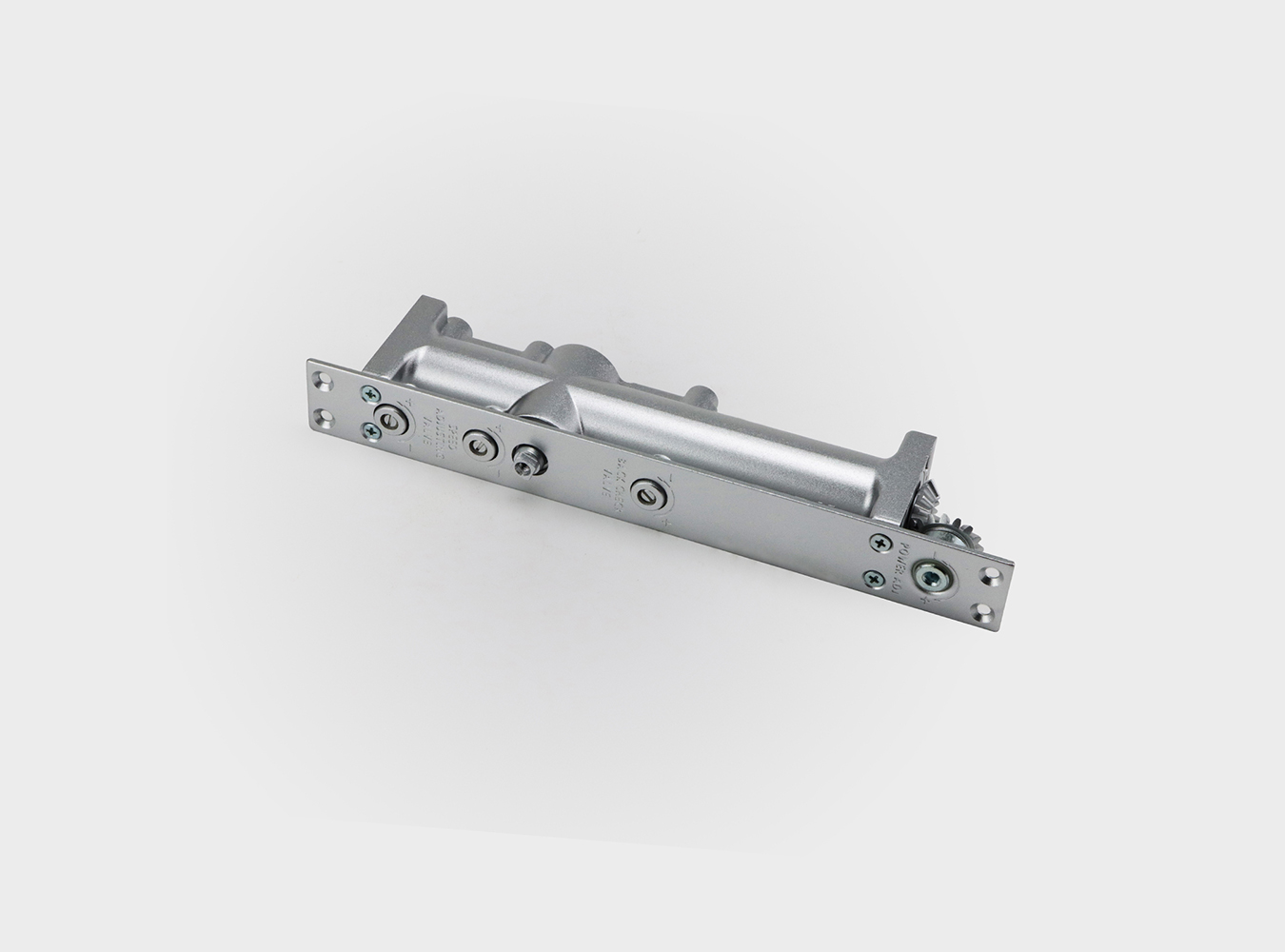

Concealed Door Closer
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | ????1250mm | |
Weight of Door ( kg ) Max. | ???100 kg | |
Back check Function | ????N/A | |
???????????????????Max. Open Angle | ???120° | |
Hold -Open | Optional | |
Closing Speed Adjustment | Speed 1 | ??Max Open Angle~10° |
Speed 2 | ???10°~0° | |
Applicable Temperature ? | ??-30℃ To 60℃ | |
Applicability | Can be used for left and right-hand doors | |
Various Finish | SILVER, GOLD, BRONZE ,,other color upon request | |
? Dimension of Main Body | Length | ???239 |
Width | ???37 | |
Height | ???61 | |
Weight ( kg ) | ??1.91kg | |
Passed Durability Test | ?500,000 cycles |
