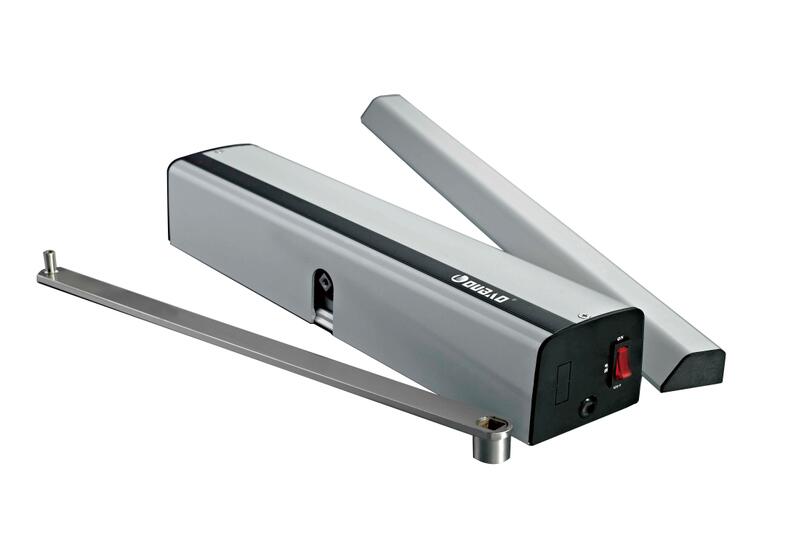

Electrical Door Closer
TECHNICAL INFORMATION & FUNCTION | ||
Max Door width | ? 1400mm | |
Max Door Weight | ? 140kgs | |
Max opening Angle | ? ?120° | |
Stop Door Model | Remote Controller | |
Cancel Stop Model | Remote Controller | |
Door Opening Time | 3.5s-10s | |
Door Closing Time | 3.5s-10s | |
Degree of protection | IP53 | |
Power Supply | DC 24V/5A | |
Standby Current | ＜100mA | |
| Noise level | ?＜60dB | |
Temperature | -20°C ~65℃ | |
Closing Force | ?5# | |
| Safety Protection | Overheat,Over current, anti-collision protection | |

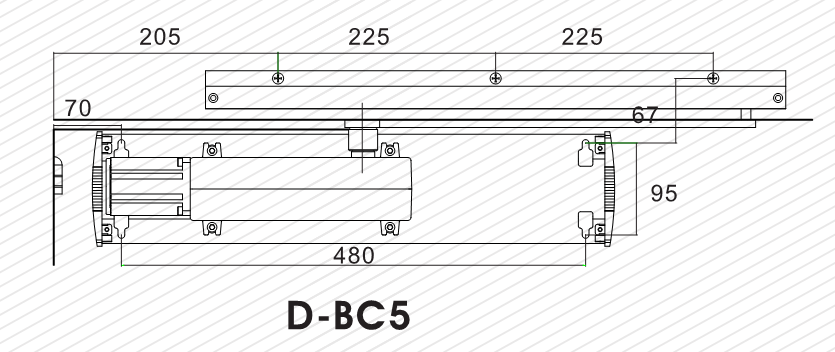

| Dimension of product | 540* 119*108mm | |
Opening and Closing Model
A)Automatic Model
Open the Door→Stop the Door→Delay Closing the Door → Closing the Door to 10°→Latch the Door→Standby
B) Normal Opening Model
a. Through remote control operation
b. Remote control operation: when the door
closer at standby state.hold the door at the setpostion angle to keep at regular open situationby remote control.
c. Cancel Normal Opening Model:Close the door
by 10° manually or through remote control
operation. It can automatic close.
On-line Technology
Intelligent door closer can supply many interfacesto connect other intelligent equipements
A.Connected to intelligent lock:
Automatic unlock and open the door . automatic close and latch the door
B. Connected to human sensor:
Micro wave sensor or passive infrared sensor. Human can be found at the sensor range.the door open automatically.
C.Connected to building/house talkback system:
lntelligent gating system in high grade apartment.
D.Connected to card reader and fingerprint sensor:
Office building,apartment and institution.
Intelligent Protection Function
When the door in operating,the door can be automatically paused if it touches human or barrier.prevent damaginghuman or barrier.
