FR7300 Floor Spring
The product features consummate craftsmanship and superior functions, suitable for common and toughened glass door wooden door and aluminum alloy door in hotel, store and office building.
SUGGESTIONS ON FLOOR HINGE SELECTION
A. Selection of different models of floor HINGE is mainly based on glass door weight.
B. Calculation of glass weight according to national standard,1mm thick common and toughened glass s 2.5kg per square meter. As to 12mm thick,23m high and 1mwide glass door commonly used in the country at present, the weight shall be 2.3x1x12x2.5=69kg.
C. The weight of the entire door can be got by adding up the weight of all accessories and the weight of glass.
D. lf heavy-duty floor HINGE is chosen for a light-weight glass doo, the cost will increase ,and you cannot obtain good opening effect because it is heavy-duty
E. lf floor HINGE with inadequate weight bearing is chosen to reduce project costs ,t will directly influence service life of floor HINGE.
F. For an outside door taking wind power into consideration ,twin-cylinder floor HINGE should be chosen regardless of door sizes.
G. In cold area floor HINGE with anti-freeze hydraulic oil injected should be chosen ,so as to prevent malfunction of floor HINGE at a very low temperature.
TECHNICAL INFORMATION & FUNCTION | ||
Suit for Door Weight | Max 150kg | |
suit for Door Width | 1000-1250mm | |
Cement box dimension | ??273*126*70mm | |
| Hold open & Max Open | ?90°&135in both direction open. Max Open: 135° | |
Closing and Latching angle | ???Closing: 90°-20°，Latching:20°-0° | |
Closing speed adjustable | ? Yes. Two-stage speed adjustable | |
Door Install adjust range | ? ?士5mm adjustable, front & back, up& down | |
Suitable Temperature | ? ?? -35℃ To 45℃ | |
Applicability | ? ?Can be used for left and right-hand doors | |
Various Finish | ? ?SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request | |

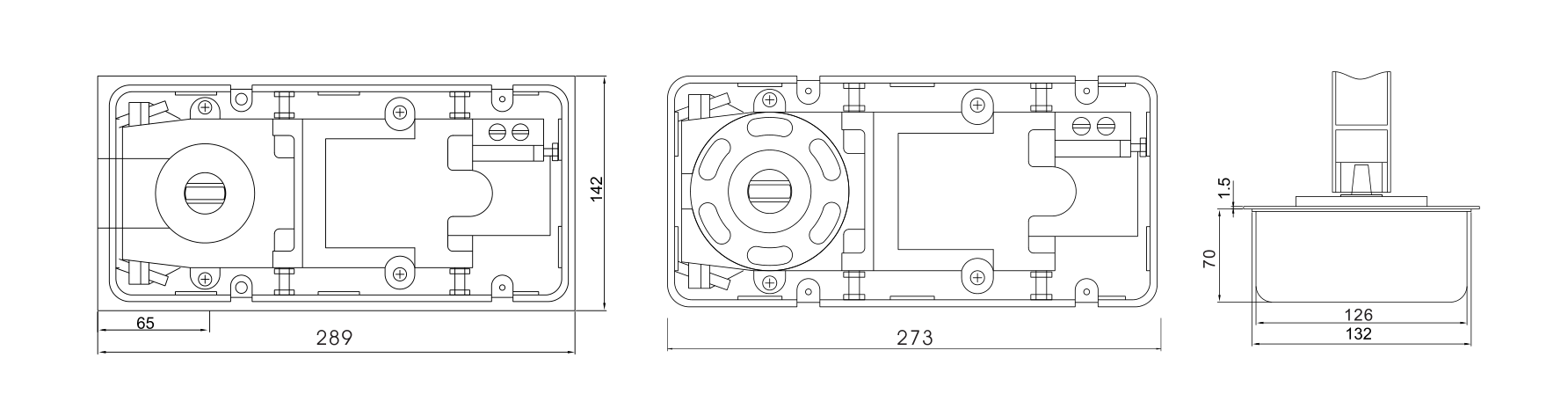

Dimension of Main Body | Length | ? ?289 |
Width | ? ?142 | |
Height | ? ?70 | |
Weight ( kg ) | ? ?6.2kg | |
Passed Durability Test | ?500,000 cycles | |
