Sliding Arm Door Closer
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | ? ?950mm | |
Weight of Door ( kg ) Max. | ? ?25-65 kg | |
Back check Function | ? ?Yes | |
| Delay action Function | ? ?Optional? | |
Max. Open Angle | ???120° | |
Hold -Open | ? Yes (with Hold Open Slide Arm) | |
Fire Door | ? ?Yes, CE(EN1154,EN1634) | |
Closing Speed Adjustment | Speed 1 | ? ?Max Open Angle~10° |
Speed 2 | ???10°~0° | |
Applicable Temperature ? | ??-30℃ To 60℃ | |
Applicability | ? ?Can be used for left and right-hand doors | |
Various Finish | ? ?SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request | |
Dimension of Main Body | Length | ? ?248 |
Width | ???42 | |
Height | ? ?52 | |
Weight ( kg ) | ? ?2.42kg | |
Passed Durability Test | ?500,000 cycles | |
| Code | Material | Packing | Carton Size |
| 9024SL | Aluminum | 6 sets/carton | 53.2*29.20cm |

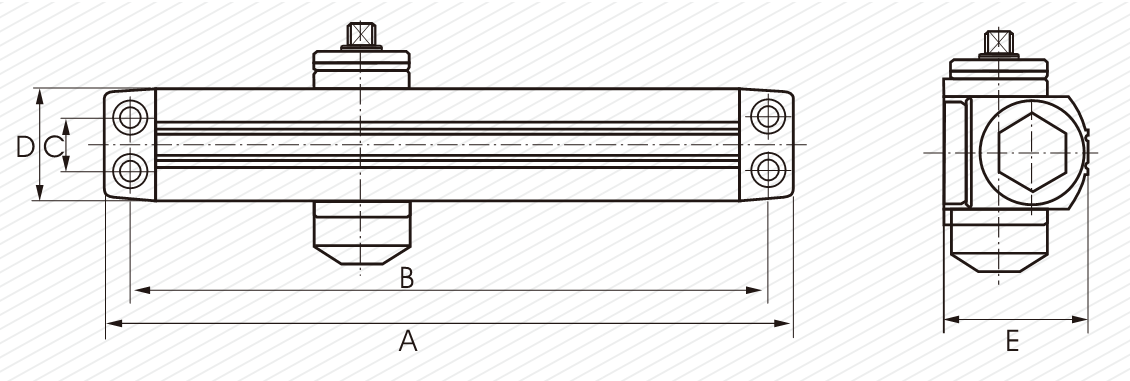

| Type | Body Dimension | ||||
| A | B | C | D | E | |
| 9024SL | 248 | 230 | 19 | 42 | 52 |
